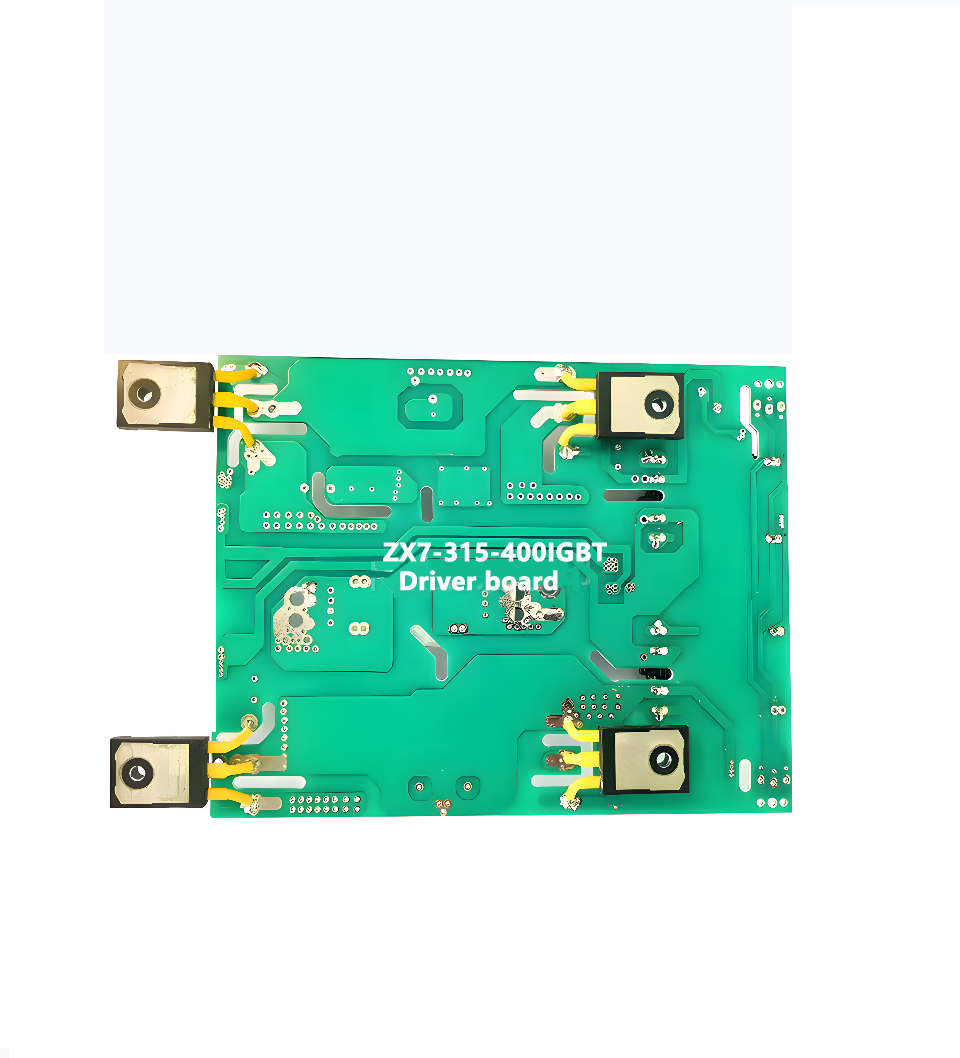

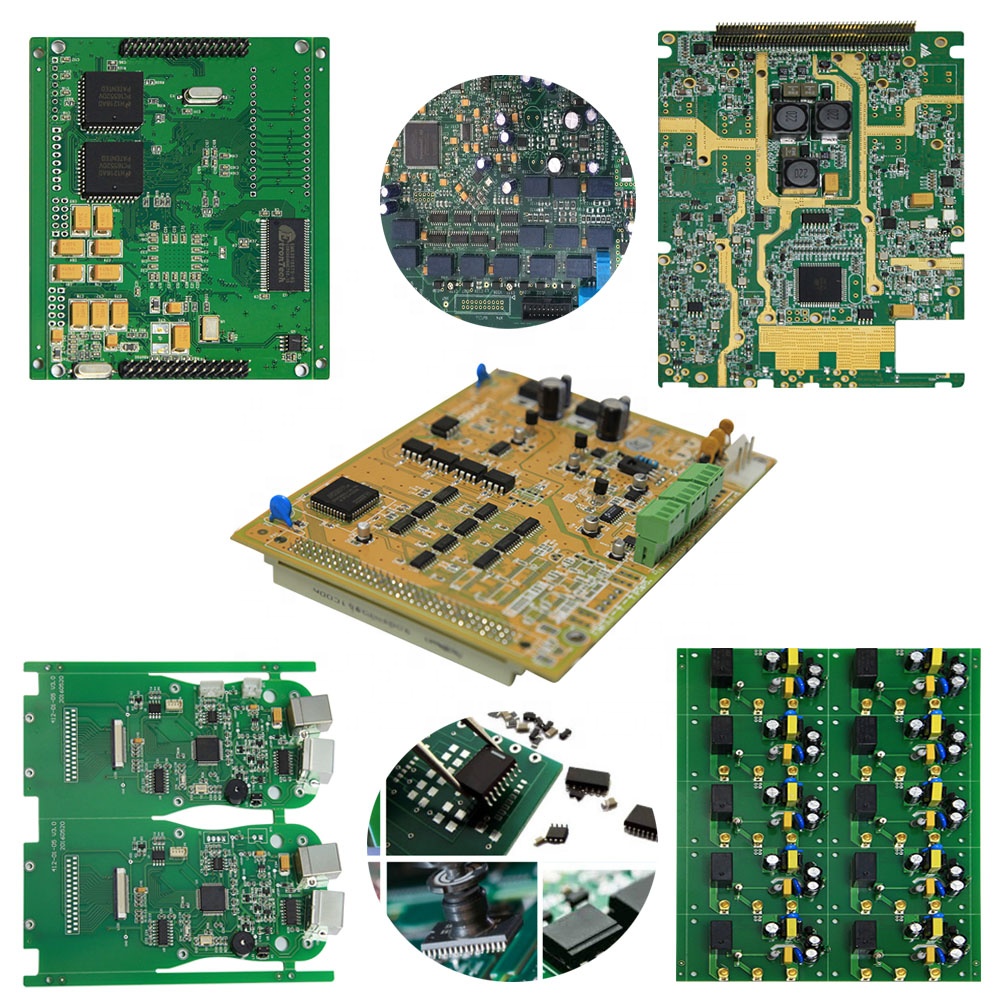

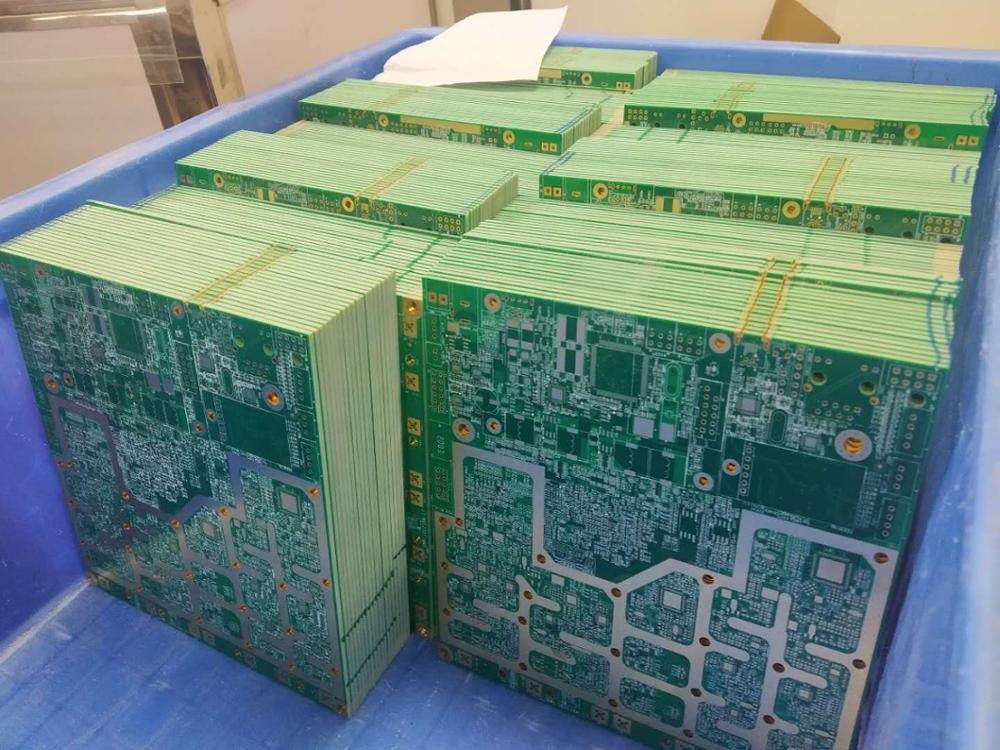

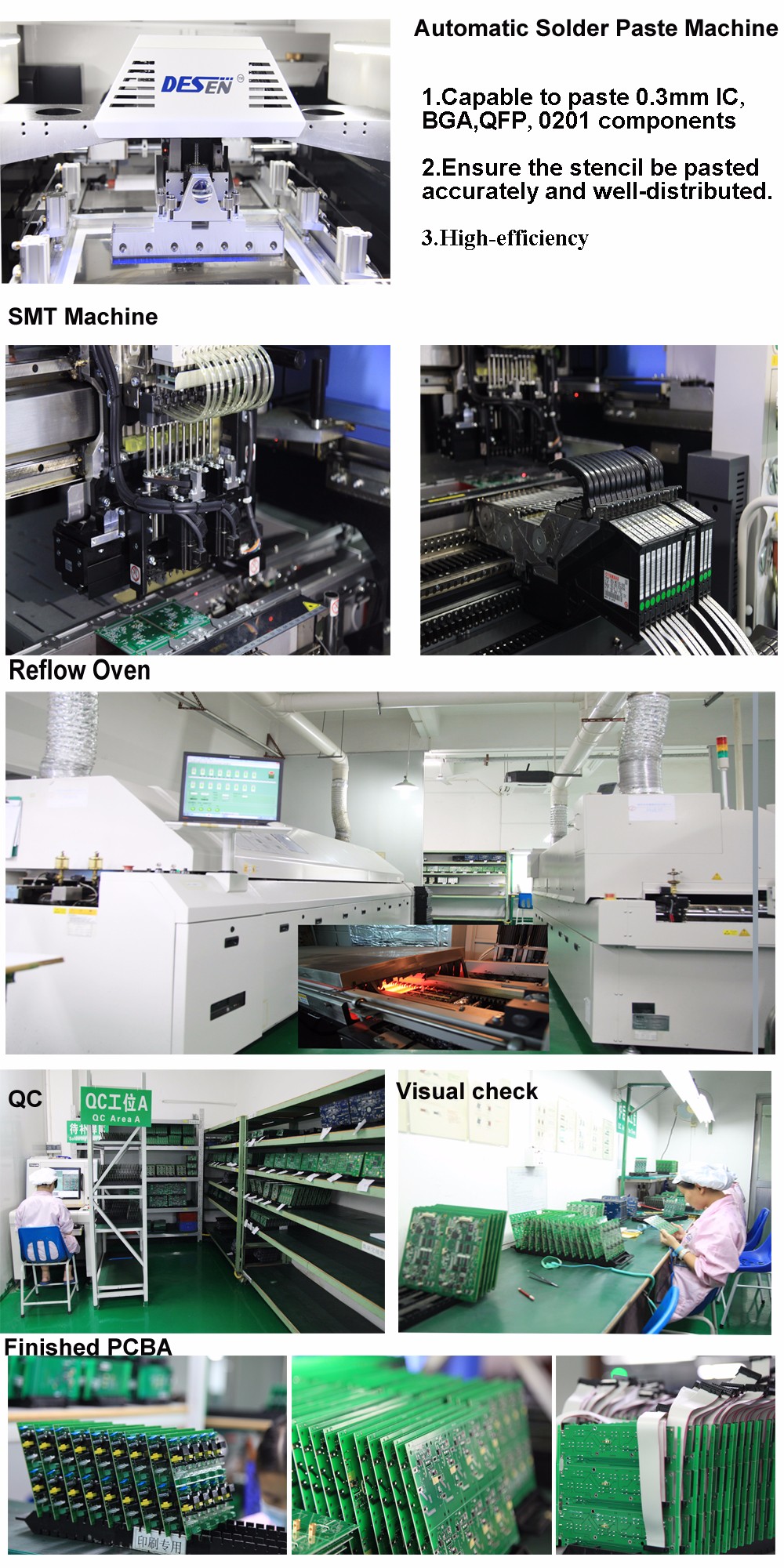

We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services. Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.
Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.

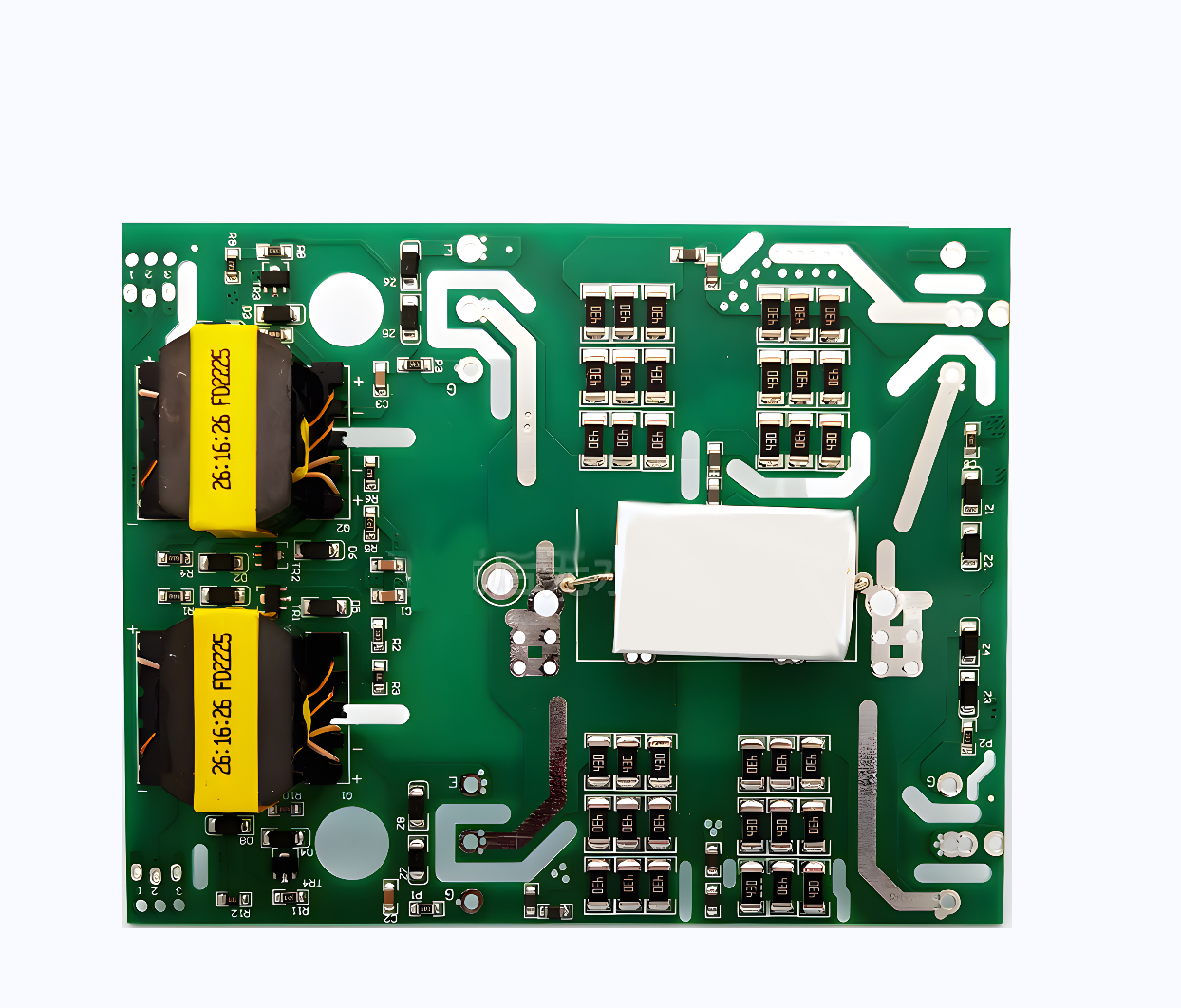

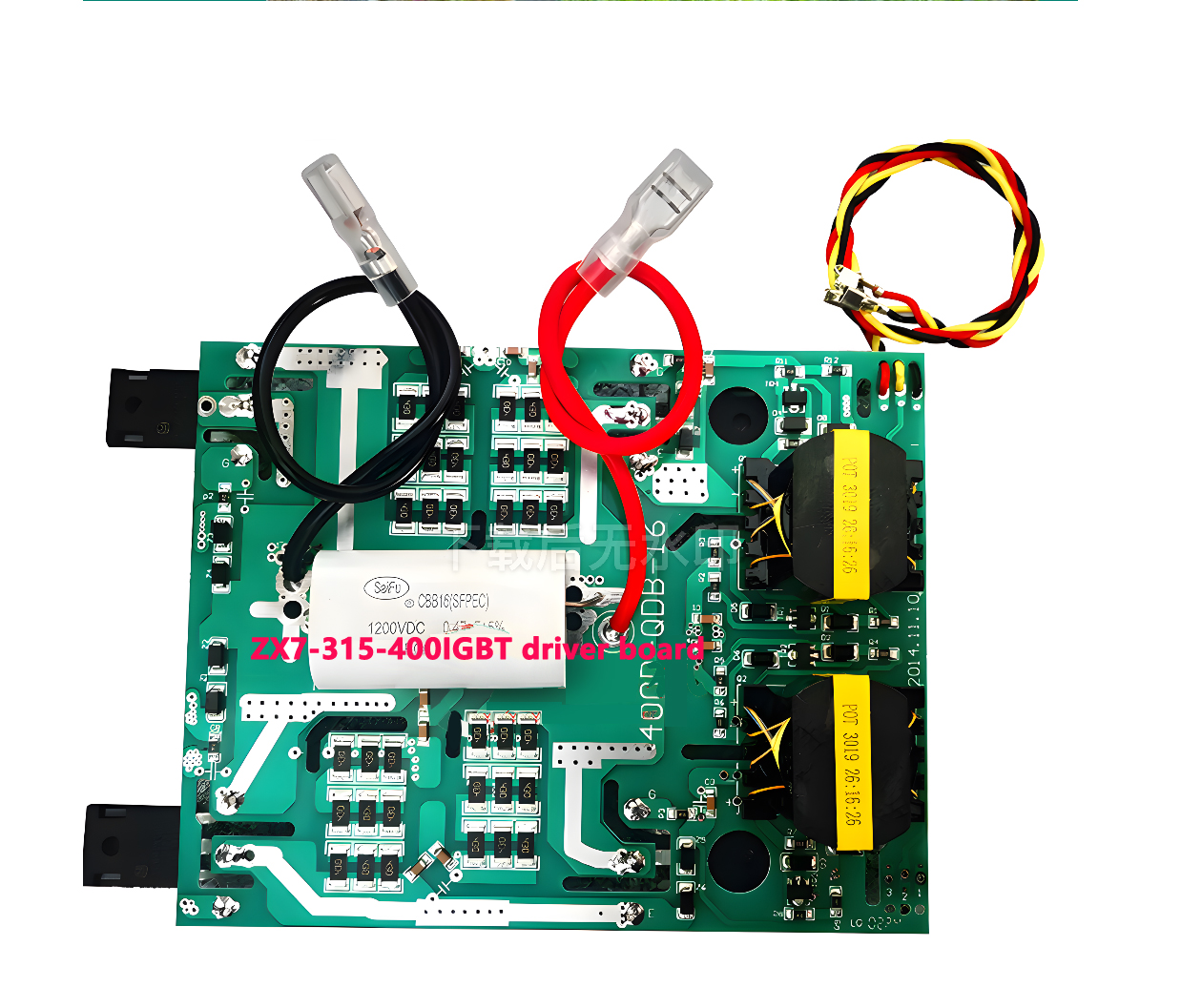

The product has eight parameter options. Please refer to the specific configuration details below and consult our team for support.
| Rigid PCB Manufacturing Capability | ||
|---|---|---|
| Category | Volume Production | Sample Processing |
| Layer count | 1-68L | 64 Layer |
| Max thickness | 10mm (394mil) | 14mm (551mil) |
| Min line width/space (Inner) | 2.2mil/2.2mil | 2.0mil/2.0mil |
| Min line width/space (Outer) | 2.5/2.5mil | 2.2/2.2mil |
| Alignment (with core board) | ±25um | ±20um |
| Inner layer alignment | ±5mil | ±4mil |
| Max copper | 6Oz | 30 oz |
| Holes size (Mechanical drilling) | ≥0.15mm(6mil) | ≥0.1mm(4mil) |
| Holes size (Laser drilling) | 0.1mm (4mil) | 0.050mm (2mil) |
| Max size (Unit) | 850mm X 570mm | 1000mm X 600mm |
| Max size (Panel) | 1250mm X 570mm | 1320mm X 600mm |
| Aspect ratio (Unit) | 20:1 | 28:1 |
| Aspect ratio (Panel) | 25:1 | 35:1 |
| Material (Lead-free/Halogen-free) | EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF | |
| High-speed PCB material | Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933 | |
| High-frequency PCB material | Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27 | |
| Others material | Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega , ZBC2000 | |
| Surface finished | HAL, HAL-LF, ENIG, IMMERSION TIN, OSP, IMMERSION SILVER, GOLD FINGER, Hard Gold/Soft Gold Plating | |
| Special technology | Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, drill Mixed RF PCB, Busbar PCB | |
Actual conditions are subject to final confirmation with support team.
As PCBs are custom products, returns are not supported. For quality issues, please contact support for a refund or replacement, but we do not bear any losses or costs beyond the product value. Delays in delivery due to force majeure factors such as power outages or water supply interruptions will not be compensated.
If there are any issues or special instructions, please communicate directly with support for confirmation. Before and after payment, please confirm the process, quantity, and layers. Problems that arise after production or shipment will not be eligible for refunds. Since this product requires a high level of expertise, please confirm requirements with your engineer beforehand.
Orders placed before 17:00 are calculated as placed on the same day; orders placed after 17:00 are considered placed the next day. "24-hour delivery" refers to one working day, not absolute 24 hours. The delivery time provided does not include Sundays or holidays.
Green solder mask, white silkscreen, 1.6mm board thickness, HASL, 1oz copper thickness, vias with solder mask, line width/spacing 0.2mm, vias above 0.3mm. Gerber format is used according to provided files. Please inform support of any special process requirements for updated quotations.
We offer flexible shipping options for PCB orders:
| Layer | Sample Shortest Lead Time | Sample Standard Lead Time | Mass Production Lead Time |
|---|---|---|---|
| 2 layer | 24 h | 3 days | 6-7 days |
| 4 layer | 36 h | 5 days | 8-10 days |
| 6 layer | 48 h | 5 days | 8-12 days |
| 8 layer | 72 h | 5 days | 9-12 days |
| 10 layer | 4 days | 7 days | 14 days |
| 12 layer | 4 days | 7 days | 16 days |
| 14 layer | 5 days | 8 days | 16 days |
| 16 layer | 5 days | 9 days | 18 days |
| 18 layer | 7 days | 10 days | 18 days |
| 20 layer and above | To be negotiated | To be negotiated | To be negotiated |
RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, GC-CAM
